Light Reading Lab Test: Carrier-Class IPSec VPN Gateways

Published 5 June 2002

Test Methodology



v. 2.2.01 Copyright (c) 2002 Network Test Inc. and Light Reading Inc. We welcome your comments and suggestions about this document and any other aspect of test methodology. We make every effort to incorporate suggestions into this test plan, but also reserve the right to change test parameters at any time.



By David Newman (dnewman@networktest.com)



1         Executive Summary

This document describes the test procedures we use to compare IPSec virtual private network (VPN) equipment for service providers. Results of this test are scheduled for publication in Light Reading.



In this project, we focus on devices situated inside the service provider’s cloud, and not CPE devices. For purposes of this project, we assume that last-mile circuits from customer sites are private and secure. Whether such an assumption is valid is out of scope for this project. The fact is that a growing number of service providers offer CO-based managed VPN services, and the main objective of this test is to assess the devices used to provide those services.



We evaluate products using the following criteria:





We determine performance results and some management/provisioning capabilities through lab testing. We determine other aspects of management, provisioning, features, and price from the responses to a questionnaire we ask all each vendor to complete.



1.1      Organization of this document

This document is organized as follows. This section introduces the project. Section 2 describes product requirements, the test bed, and test equipment. Section 3 describes test procedures. Section 4 logs the changes to this document.



2         The Test Bed

This section discusses requirements of systems under test and introduces the test equipment to be used.



2.1      Devices under test

Participating vendors must supply at least three VPN security gateways, each equipped as follows:





Participating vendors must supply management/provisioning software and should supply a host on which to run the software.



Vendors may supply configurations that use load-balancing or clustering of multiple devices. In such cases, configurations must hide any addresses other than those listed in this document.



2.2      The Test Bed

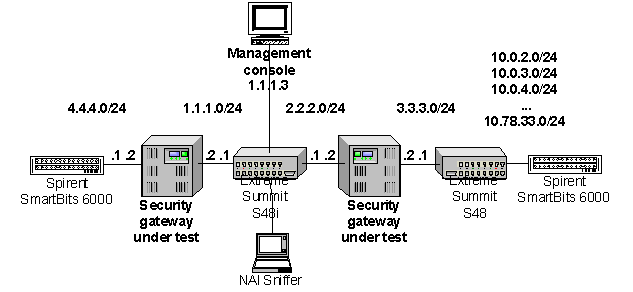

The following diagram shows the general layout of the test bed we use for performance evaluation. All interfaces are gigabit Ethernet (1000Base-TX or 1000Base-SX) except for those connecting the management console and Sniffer; these are 100Base-T.





2.2.1      Device Configuration

Because we want each device to perform as well as it can, we ask vendors to optimize their device configurations prior to test time. We believe we have given all necessary configuration parameters in this document; if not, please contact Network Test with any questions.



We configure Ethernet interfaces on the test bed to run at 1000-Mbit/s rates and run in full-duplex mode. Vendors must disable autonegotiation on device under test (DUT) interfaces.



Prior to testing, vendors must configure devices with IP addresses and subnet masks as shown.  Vendors also must preconfigure all tunnel definitions.



For all tunnel establishment attempts, we use the following parameters:



Phase 1 mode: Main mode

Phase 1 encryption algorithm: 3DES

Phase 1 hashing algorithm: SHA-1

Phase 1 Diffie-Hellman group: 2

Phase 1 life type, duration: time-based, 28,800 seconds

PRF: Not defined



Phase 2 mode: Quick mode

Phase 2 life type, duration: time-based, 28,800 seconds

Phase 2 PFS: enabled

Phase 2 encapsulation mode: tunnel mode

Phase 2 encryption algorithm: 3DES

Phase 2 message authentication algorithm: HMAC-SHA



2.3      Test platform

2.3.1      Spirent SmartBits

The principal test instrument for this project is the SmartBits traffic generator/analyzer from Spirent Communications Inc. (Chatsworth, Calif.). Spirent’s SmartBits 6000 chassis is equipped with the company’s LAN-3201B gigabit Ethernet and TeraMetrics LAN-3301 10/100/1000 Ethernet cards.



We use two SmartBits applications in this project: SmartFlow v. 1.4 and SAI (Spirent Application Interface) v. 3.0.



SmartFlow is capable of generating any packet type in any traffic pattern at line rate across an arbitrarily large number of interfaces, using an arbitrarily large number of subnets.



SAI uses the same SmartFlow API as SmartFlow, but takes its instructions from user-developed scripts instead of the SmartFlow GUI. Functionally, SAI and SmartFlow are equivalent; both make identical packets on the wire. We use SAI because it automates some tasks that are repetitive in SmartFlow.



2.3.2      NAI Sniffer

We use the Sniffer Pro 4.6 analyzer from Network Associates Inc. (NAI, Santa Clara, Calif.) for troubleshooting and traffic analysis. The Sniffer performs decodes of all standard IKE header messages.



2.3.3      Extreme Networks Summit S48

To forward traffic between subnets, the devices under test attach to Summit48 switches from Extreme Networks Inc. (Santa Clara, Calif.). In previous tests, the Summit48 has proven itself capable of forwarding any traffic pattern among all ports at line rate.



In all tests, one Summit48 will connect the devices under test. We may elect to attach the SmartBits directly to the devices under test in some procedures involving only one private subnet per virtual site.



3         Test Procedures

3.1      Terminology

IKE -- Internet Key Exchange. The key management mechanism defined for use with IPSec. An IKE negotiation precedes any IPSec session. In it, peers agree on the security parameters to be used in exchanging keys and in exchanging user data.



IKE Phase 1 -- The exchange of keying and other information between security gateways. The purpose of Phase 1 negotiations  is to establish an environment for the secure exchange of session information that occurs in Phase 2.



IKE Phase 2 -- The exchange between security gateways of encryption, authentication, and other parameters to be used in IPSec SAs.



Tunnel -- The completion of a successful IKE Phase 1 and one Phase 2 negotiation and two one-way SAs for IPSec data transfer.



In some tests, this document refers to multiple pairs of IPSec SAs being passed over a connection negotiated by one IKE SA. Except where explicitly noted as such, references to “tunnels” mean the combination of IKE SA plus pair of one-way IPSec SAs.



3.2      Management and Provisioning



3.2.1      Objective

To determine provisioning and management capabilities of the VPN security gateways under test.



3.2.2      Test Bed Configuration

Most questions in this section do not require hands-on testing. For those that do, a management console must securely monitor/manage at least two VPN security gateways, as shown in Section 2.



3.2.3      Procedure

We verify the following functions. Most categories are simply pass/fail checks; a management platform either does or does not perform a given function. For categories labeled “subjective,” we rate management platforms on a 1-to-5 scale, where 1 = poor; 2 = fair; 3 = good; 4 = very good; and 5 = excellent.



3.2.3.1       Secure monitoring

Communications between VPN security gateways and management console are encrypted (verified with a Sniffer) (pass/fail)

Encryption type used between VPN security gateways and management console (proprietary/SSH/3DES/other)

Communications between VPN security gateways and remote management software (e.g., a home or notebook system) are encrypted (verified with a Sniffer) (pass/fail)

Encryption type used between VPN security gateways and management console (proprietary/SSH/3DES/other)



3.2.3.2       Policy management/provisioning

Note ease of tunnel provisioning (subjective -- rated 1 to 5, where 1 = poor and 5 = excellent)

Note ease of remote security gateway configuration (subjective -- rated 1 to 5, where 1 = poor and 5 = excellent)

Note richness of hierarchy of management roles (subjective -- rated 1 to 5, where 1 = poor and 5 = excellent)

Note availability of customer “template” for rapid provisioning of multiple tunnels (pass/fail)

Assess capability for change accounting (subjective -- rated 1 to 5, where 1 = poor and 5 = excellent)

Note capability for storing multiple customers’ policies as single data store (pass/fail)

Note capability to view all of a given customer’s network from management platform (pass/fail)

Note capability to view part of a given customer’s network from management platform (pass/fail)

Note maximum number of devices managed by single data store

Note maximum number of policies managed by single data store



3.2.3.3       Log management

Note ability to count packets entering/leaving individual tunnels in real time (pass/fail)

Note ability to count packets dropped on individual tunnels in real time (pass/fail)

Note ability to count bytes entering/leaving individual tunnels in real time (pass/fail)

Note ability to log fault mode for packets dropped on individual tunnels in real time (pass/fail)

Note capability for dedicated log server (not simply Unix syslog) (pass/fail)

Note capability for log server redundancy (pass/fail)

Note capability of automation of log rotation and archiving (pass/fail)

Note capability for log archiving/retrieval per customer (pass/fail)

Note capability for log archiving/retrieval per customer site (pass/fail)

Note capability for log archiving/retrieval per customer tunnel (pass/fail)

Note back-end export formats (OSS, Oracle, etc.)





3.3      IPSec VPN Performance

For each routine in this section, this document describes:



·        the test objective;

·        the configuration to be used;

·        the procedure to be used;

·        the test metrics to be recorded.



3.3.1      Baseline Forwarding and Latency



3.3.1.1       Objective

To determine the basic forwarding and delay characteristics of the devices under test.



3.3.1.2       Test Bed Configuration

The test bed is shown below. It comprises the following subnets:





Vendors’ representatives must configure all devices under test (DUTs) to disable compression, if supported, and to enable network address translation. Time permitting, vendors may elect to conduct retests with compression enabled.





3.3.1.3       Procedure

After bringing up one tunnel between sites 1 and 2, we use the SmartBits traffic generator/analyzer running SmartFlow and/or SAI to offer a bidirectional stream of UDP/IP packets. The SmartBits uses a binary search algorithm to determine the highest rate at which the device forwards traffic without loss (throughput, as defined in RFC 1242). We also measure average latency at the throughput level.



We repeat these tests with 64-, 256, 1,400-, and 1,518-byte UDP/IP packets.[1]



Time permitting, we may repeat the same test with up to 20,000 concurrent tunnels (one though each pair of subnets, as described in section 3.3.3), and note any difference in throughput. We offer the ability to test on up to 20,000 tunnels; please advise Network Test ASAP if your device supports more than 20,000 concurrent tunnels.



Time permitting, we may rerun tests with compression enabled in devices that support it. All vendors must complete baseline tests with compression disabled.



The test duration is 30 seconds.



3.3.1.4       Metrics

Throughput (Mbit/s)

Average latency



3.3.2      Availability and Failover Times



3.3.2.1       Objective

To determine failover time upon failure of a primary security gateway.

To determine session integrity upon failure of a primary security gateway.



3.3.2.2       Test bed configuration

As shown in the figure below, this test requires three VPN security gateways. Two of the devices will either load-share traffic or act as primary and hot-standby units.



The test bed is shown in Section 2. It comprises the following subnets:



·        3.3.3.0/24 - Private-line subnet

·        10.0.2.0/24 - Private-line subnet, site 2





3.3.2.3       Procedure

We establish one tunnel between the control and primary VPN security gateways. Using the SmartBits and SmartFlow applications, we offer traffic at a rate of 10,000 packets per second. Then we physically remove the cabling connecting the primary and control security gateways. Traffic flow should resume across the secondary security gateway.



We use 64-byte UDP/IP frames for this test.



We derive failover time from frame loss. At a rate of 10,000 fps, each lost frame counts for 100 microseconds of failover time. If the DUT cannot forward packets at a rate of 10,000 fps, we reduce the offered load to the throughput rate, and note the result.



We also note whether IPSec SA information is migrated onto the secondary security gateway or whether rekeying is required.



3.3.2.4       Metrics

Frame loss

Failover time (derived from frame loss)

Session loss (pass/fail)



3.3.3      Concurrent tunnel capacity



3.3.3.1       Objective

To determine the maximum number of concurrent tunnels an IPSec device will support.



3.3.3.2       Test Bed Configuration

This test requires two security gateways. If supported, a pair of security gateways should allow establishment of multiple IKE Phase1 tunnels.



The test bed is shown below. It comprises the T subnets, where T is the number of tunnels the vendor wishes to attempt.



This configuration models a service provider’s network in which the service provider sets up tunnels between a customer’s headquarters office and multiple branch offices.





Devices on the test bed must be configured as follows:





Vendors’ representatives must declare the number of tunnels they wish to attempt, as follows:



--maximum intended tunnels (one IKE Phase 1 plus one pair of Phase 2 IPSec SAs)

--one Phase 1 IKE, maximum intended Phase 2 IPSec SAs



Vendors’ representatives must preconfigure their devices with all necessary tunnel definitions. Each tunnel definition should use a different pair of subnets, as noted above.



We will use the following parameters in all tunnel establishment attempts:



Phase 1 mode: Main mode

Phase 1 encryption algorithm: 3DES

Phase 1 hashing algorithm: SHA-1

Phase 1 Diffie-Hellman group: 2

Phase 1 life type, duration: time-based, 28,800 seconds

PRF: Not defined



Phase 2 mode: Quick mode

Phase 2 life type, duration: time-based, 28,800 seconds

Phase 2 PFS: enabled

Phase 2 encapsulation mode: tunnel mode

Phase 2 encryption algorithm: 3DES

Phase 2 message authentication algorithm: HMAC-SHA



3.3.3.3       Procedure

Using SmartFlow, we offer bidirectional traffic between each pair of subnets to establish an IKE Phase 1/IPSec Phase 2 tunnel.



We will begin with one tunnel establishment attempt and continue to increment the number of tunnel establishment attempts until the number attempted is not equal to the number of tunnels established.



We repeat the test by attempting a large number of IPSec SAs through a single IKE session.



We note the maximum numbers of established tunnels and IPSec SAs. We use the Sniffer to verify the use of unique SPIs for each tunnel.



3.3.3.4       Metrics

Maximum tunnels established

Maximum pairs of IPSec SAs established



4         Change History

Version 2.2.01

Date: 8 April 2003

Title bar: Inserted actual publication date of 5 June 2003



Version 2.2.00

Date: 26 February 2002

Sections 2.2, 3.3.1.2, 3.3.2.2, 3.3.3.2:

Corrected addressing on test bed to indicate use of 4.4.4.0/24 subnet



Version 2.1.01

Date: 22 February 2002

Section 1:

Deleted erroneous publication date



Version 2.1.00

Date: 21 February 2002

Section 2.2:

Corrected addressing on test bed to indicate use of 3.3.3.0/24 subnet



Section 3.3.1.2:

Corrected addressing on test bed to indicate use of 3.3.3.0/24 subnet



Section 3.3.2.2:

Corrected addressing on test bed to indicate use of 3.3.3.0/24 subnet



Section 3.3.3.2:

Corrected addressing on test bed to indicate use of 3.3.3.0/24 subnet



Version 2.0.00

Date: 20 February 2002

Section 2.2:

Changed test bed addressing to put subnets x.x.1.x on left, all others on right



Section 2.3.1:

Deleted TeraVPN from test



Added LAN-3201B (fiber gigE) interfaces to test bed



Added SAI scripting to test bed



Section 3.2.3.3:

Added checks of real-time tunnel monitoring statistics



Section 3.3.1.2:

Changed test bed addressing to put subnets x.x.1.x on left, all others on right



Section 3.3.1.3:

Added reference to SAI



Added 256-byte frame size



Revised scalability text to clarify that up to 20,000 tunnels are possible



Section 3.3.2.2:

Changed test bed addressing to put subnets x.x.1.x on left, subnets x.x.2.x on right



Section 3.3.3

Deleted references to TeraVPN. Reworked configuration and procedure for back-to-back topology.





Version 1.00.29

Date: 30 January 2002

Initial public release




[1] References to packet length in this document cover the distance from the first byte of the Ethernet header to the final byte of the Ethernet CRC, inclusive, prior to the packet entering an IPSec tunnel.
